產品概述（Products Overview）:

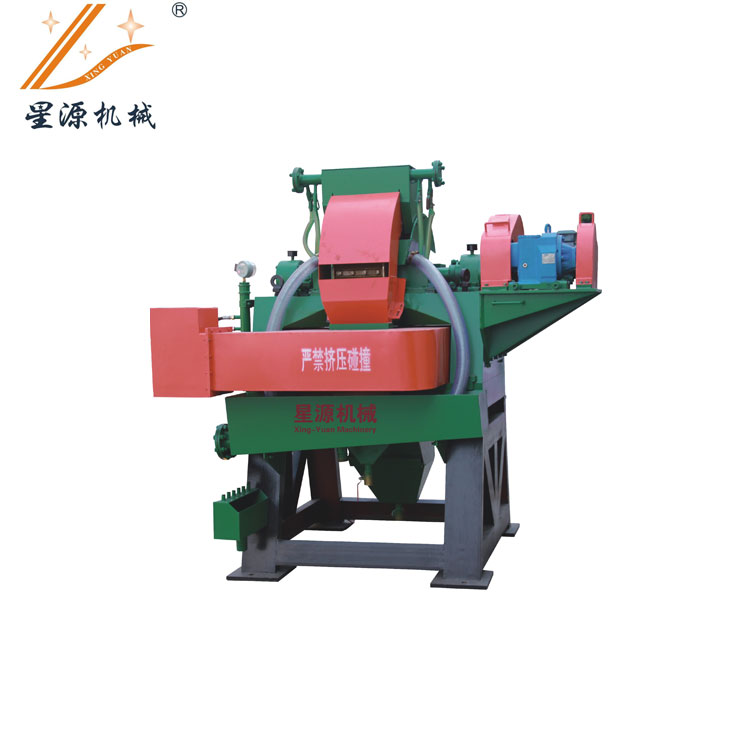

立環脈動高梯度磁選機是目前國內外性能較好、技術先進的強磁設備，該機采用轉環立式旋轉、反沖精礦，并配有脈動機構，從根本上解決了平環強磁選機和平環高梯度磁選機磁介質容易堵塞這一世界性技術難題，它具有富集比大、對礦粒度、濃度和品位波動適應性強、工作可靠、操作維護方便等優點，該機分選弱性礦石實現了精礦品位高和回收率高的雙高優點。

Vertical ring pulsating high gradient magnetic separator is the best and most advanced strong magnetic separation equipment in domestic and oversea at present. It adopts vertical rotating ring, recoil concentrate, and is equipped with pulsating mechanism. Fundamentally solves the worldwide technical problem that the magnetic medium of the Horizontal ring magnetic separator is easily blocked. It has the advantages of large enrichment ratio, strong adaptability to the fluctuation of ore size, concentration and grade, reliable operation and easy maintenance, etc. The machine has the advantages of high concentrate grade and high recovery rate by separating weak magnetic ores.

適用范圍（Application):

●赤鐵礦、褐鐵礦、嶺鐵礦、鈦鐵礦、烙鐵礦、黑鎢礦、鉭鈮礦等弱磁性礦物的選礦。

●石英、長石、霞石、螢石、硅線石、鋰輝石、高嶺土等非金屬礦物的除鐵提純。

●For processing fine. Feebly magnetic minerals, such as hematite, limonite, siderite, ilmenite, wolframite, tantalum-niobium, and etc.

●For purifying and iron removal of nonmetallic minerals such as quartz, feldspar, nepheline, fluorite, sillimanite, spodumene and kaolin.

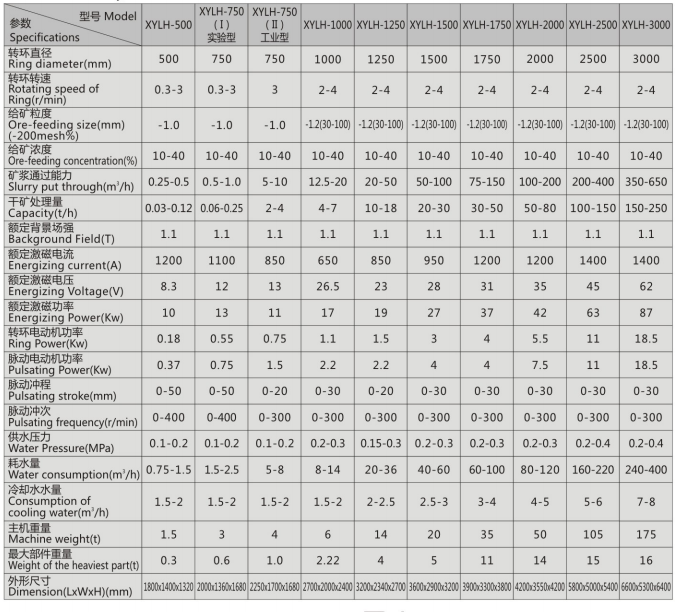

產品參數（Parameters）:

4.注：不同物料的礦漿和干礦處理量都有所差異，以下指標僅為參考，須按實際物料再確定！

 Note: There are difference in processing capacity between ore pulp and dry ore, the following indicators are for reference only, to be confirmed in accordance with the actual materials.
